CS 231n

Systematical learning Machine Learning in CV

Resources

Some newly-learned thoughts

Training sets, validation sets & test sets

We should isolate the test sets with the training process, "just test the final model at the very end" to avoid overfitting
Often validation sets are extracted from training sets

Parameters in Linear Model

We can view the Weight Matrix as a set of templates, and the scores as the similarity between the input and the templates
So when printing the weights, we can somehow visualize the templates we learned
Picture below is what we learned from the CIFAR-10 dataset using SVM

SVM (Support Vector Machine)

Hinge Loss: \(L_i = \sum_{j\neq y_i} \max(0, s_j - s_{y_i} + margin)\), so-called max-margin loss because it encourages the correct class to have a score higher than the incorrect class by at least a margin
The hinge loss is "easy to be satisfied" since it only cares about the margin, not the exact value of the score (e.g. [1,0] & [100,-100] both have the same loss when the margin is 1)

Differentiation on Vectors

Split: Trying to do the differentiation on a smaller vector or even a single element instead of a matrix.

For example, solving Softmax - Cross Entropy Loss: \(x\) is a 1-D linear vector \(\frac{\partial{Loss}}{\partial{x}}=\frac{\partial{Loss}}{\partial{score}} \frac{\partial{score}}{\partial{x}}= -\frac{1}{score_i} \frac{\partial{score_i}}{\partial{x_i}}=-\frac{1}{score_i} score_i (score_i - (y_i == i))\)

Dimension: Use Dimension to check or gain a overview of the result.

Process

Preprocessing matters a lot.
- Mean subtraction: Subtract the mean of the data, thus the data should be centered around the origin
- Normalization: Divide the data by the standard deviation, thus the data should be normalized to a similar scale
- PCA: Reduce the dimension of the data, thus the data should be more efficient to compute.For example, SVD etc.
- Feature extraction: Extract the features from the raw data, thus the data should be more informative to the model. For example, HOG, Color Histogram etc.
- Data Augmentation: Generate more data from the original data, thus the model should be more robust to the noise. For example, flip, rotate, crop etc.
Training
- Optimization: The gradient descent, the stochastic gradient descent, the mini-batch gradient descent, the momentum, the RMSprop, the Adam etc.
- Hyparameter Debug: The learning rate, the regularization strength, the number of hidden units, the number of layers, the number of epochs, the batch size etc.
- Monitor the Process: The loss, the accuracy, the gradient, the weights, the features etc.
- Visualize the Result: The weights, the features, the templates etc.

Assignment

Assignment 1

K-NN (K Nearest Neighbors)

No training, just memorizing the data
In prediction, compute the Distance with every sample (Costly)
Use K-fold cross validation to find the best K. Concretely speaking, split the training sets into K folds, and choose each as validation set, and evaluate the model finally.

SVM (Support Vector Machine)

Hinge Loss: \(L_i = \sum_{j\neq y_i} \max(0, s_j - s_{y_i} + margin)\)
Regularization: \(L = \frac{1}{N} \sum_i L_i + \frac{1}{2}\lambda |W|^2\), where \(\lambda\) is the regularization strength
Gradient Descent:
- \(W -= \alpha \nabla_W L\),
- \(\nabla_W L_{yi} = - \Sigma_{j \neq y_i}1(w_jx_i + \Delta > 0)x_i\)
- \(\nabla_W L_i = 1(w_jx_i + \Delta > 0)x_i\)

Softmax

Cross Entropy Loss: \(L_i = -\log(\frac{e^{score_{y_i}}}{\Sigma_j e^{score_j}})\)
Gradient Descent: \(W -= \alpha \nabla_W L\), where \(\nabla_W L_i = -x_i(\frac{e^{score_{y_i}}}{\Sigma_j e^{score_j}} - 1)\)

2-Layer Network

Combination of the lessons above. Not so hard to complete.
Softmax gradient, however, seems hard to do right? But the final implement of training 2-layer network runs well and achieves the accuray of about 50%

Feature Extraction

Color Histogram: Count the number of pixels in each color channel
HOG (Histogram of Oriented Gradients): Count the number of gradients in each direction
Training on raw pixel V/S on features: After extracting the features, the model can outperform the raw pixel model a lot.

Assignment 2

Fully Connected Neural Network

Multi-layer packaged class
Optimization
- SGD(Stochastic Gradient Descent):

  \(W -= \alpha \ d_W\)
  - Simplest way (converge slowly)
- SGD_Momentum:

  \(v = \beta v - \alpha \ d_W\)

  \(W += v\)
  - Simulate the physical process as ball rolling down the hill
- RMSprop:

  \(cache = \beta cache + (1-\beta) d_W^2\)

  \(W -= \alpha \frac{d_W}{\sqrt{cache} + \epsilon}\) (\(\epsilon\) avoids division by zero)
  - Adjust the learning rate adaptively, but the gradient may become too small
- Adam:

  \(m = \beta_1 m + (1-\beta_1) d_W\)

  \(v = \beta_2 v + (1-\beta_2) d_W^2\)

  \(mt = \frac{m}{1-\beta_1^t}\)

  \(vt = \frac{v}{1-\beta_2^t}\)

  \(W -= \alpha \frac{mt}{\sqrt{vt} + \epsilon}\)
  - Combine the advantages of RMSprop and Momentum

Normalization

Batch Normalization:
- Normalize the input of each layer, thus the model should be more robust to the noise and the gradient should be more stable, - But the performance depends on the batch size a lot.
- Gradient reference
Layer Normalization:
- Normalize the input of each sample, thus the model should be more robust to the noise and the gradient should be more stable.
- But the performance may be influenced by the feature dimensions.
- Gradient is easy. We can transpose the matrix and transform the problem into the batch normalization.
- (N,D) -> (D,N)
Problem: The result of my code seems somewhat strange, like normalization works worse than without normalization. I think the problem may be the learning rate or the batch size, but I have no energy to debug it.

Dropout

Randomly set some neurons to zero, thus the model should be more robust to the noise and the overfitting should be avoided.
mask = (np.random.rand(*x.shape) < p) / p
p is the probability of keeping a neuron active, and thus the mean of the output (or mathematical expectation) should be the same as the input.

Convolutional Neural Network

Convolution Layer
- Filter
  - The learned template to extract the features
  - Often \(3*3*C\) with stride 1
  - Share parameters. Using the same filter to do convolution on the whole input, thus the model should be more efficient to compute and the number of parameters should be highly reduced.
  - Too large filter may lead to a linear model, and costs more memory.
  - Examples of features
- Padding
  - Add some zeros around the input, thus the output should be the same size as the input, which is convenient for the next layer to compute.
  - Avoid the information loss on edges.
  - \(P = \frac{F-1}{2}\), where \(F\) is the size of the filter and \(S = 1\)
- Pooling
  - Max Pooling: \(max(x)\) (Popular in practice, often \(2 * 2\))
  - Average Pooling: \(mean(x)\)
  - Reduce the size of the input, thus the model should be more efficient to compute and the number of parameters should be highly reduced.
  - Avoid the overfitting and the noise.
- Layer Strutcture
  - Input: \(N * C * H * W\)
  - Filter: \(F * C * HH * WW\)
  - Output: \(N * F * H' * W'\)
  - Activation (often Relu): \(N * F * H' * W'\)
  - Pooling: \(N * F * H'' * W''\)
Normalization
- Spatial Batch Normalization
  - Similar to Batch Normalization.
  - X = x.transpose(0, 2, 3, 1).reshape(-1, C)
- Group Normalization
  - Similar to Layer Normalization.
  - X = x.reshape(N*G, -1)

PyTorch

Useful tool to build the model and train the model
Tutorial
Docs
Structure
- nn.Module
  - Personalized model, more flexible
  - Implement forward function
- nn.Sequential
  - Simple model, just concatenate the layers

Optimization

optim.SGD
optim.Adam
optim.RMSprop
Backward Propagation

    optimizer.zero_grad() # clear

    loss.backward()       # backpropagation

    optimizer.step()      # update

Training

Assignment 3

Visualizing

Salicency Maps
- A saliency map tells us the degree to which each pixel in the image affects the classification score for that image.
- To compute it, we compute the gradient of the unnormalized score corresponding to the correct class with respect to the pixels of the image.
- Or say, it visualizes the feature map of the input image.
Fooling Images
- We can perform gradient ascent on the input image to maximize the class score, stopping when the network classifies the image as the target class.
- In practice, the fooling images often just looks like blurring the original image a little bit.
Class Visualization
- We can also synthesize an image to maximize the classification score of a particular class
- Or say, visualizes what the network thinks various classes look like.
- Looks like AIGC images

RNN Captioning

Vanilla RNN
- The simplest RNN, but the gradient may vanish or explode.
- Use the hidden state to store the information of the previous time step, and use the input to update the hidden state.
- \(h_t = \tanh(W_{hh}h_{t-1} + W_{xh}x_t)\)

  \(y_t = W_{hy}h_t\)
- The gradient is easy to compute, but the performance is not so good.
LSTM
- The most popular RNN, with the forget gate, the input gate, the output gate.
- The gradient is easy to compute, and the performance is good.
- \(f_t = \sigma(W_{hf}h_{t-1} + W_{xf}x_t + b_f)\)

  \(i_t = \sigma(W_{hi}h_{t-1} + W_{xi}x_t + b_i)\)

  \(o_t = \sigma(W_{ho}h_{t-1} + W_{xo}x_t + b_o)\)

  \(g_t = \tanh(W_{hg}h_{t-1} + W_{xg}x_t + b_g)\)

  \(c_t = f_t \odot c_{t-1} + i_t \odot g_t\)

  \(h_t = o_t \odot \tanh(c_t)\)

Transformer

Attention Is All You Need
Highly Recommend Movie By Hung-yi Lee
Actually I havn't understood it well yet today, 2024.2.27

After watching the lecture of Lee, now I got some new thoughts, 2024.2.28
Structure
- Basic structure in paper:
- Abstract structure:
Attention Mechanism
- Self-Attention
  - Scaled Dot-Product Attention
  \(Attention(Q,K,V) = softmax(\frac{QK^T}{\sqrt{d_k}})V\)

  Q is the query to match others, K is the key to be matched, V is the value to be extracted
  - Use Dot-Product to compute the relationship between the query and the key, and use the softmax to normalize the result.
  - Concretely, \(Q_i\) will be used to compute the attention score with all \(K_j\), and the corresponding result \(score_{i, j}\) will be used to compute the weighted sum of all \(V_j\), which is the output
  - Finally multiply the value with the normalized result, converting the attention score to the output.
- Multi-Head Attention
  - Split the input/output dimension into multiple smaller heads.
  - Compute the attention score with multiple parallel attention mechanisms, and concatenate the result.
  - Thus the model should be more expressive and the performance should be better, for multiple smller attention mechanisms can capture different features and run more efficiently.
Embedding
- Positional Encoding
  - Since transformer discards the sequential information, we need to add the positional encoding to the input embedding.
  - Just add the position embedding to the input embedding.
  \(PE(pos,\ 2i) \ \ \ \ \ \ = \sin(pos/10000^{2i/d_{model}})\)

  \(PE(pos,2i+1) = \cos(pos/10000^{2i/d_{model}})\)
  - Use the sine and cosine function to encode the position information, because it's easy to add length when training length changes.
- Word Embedding
  - Use the pre-trained word embedding, or train the word embedding with the model.
  - Similar to that of RNN.
Other Tricks
- Residual Connection
- Normalization
- Feed Forward Network
- Optimizer
Training
- Input features
  - Embedding
    - Embedding the features annd positional encoding
  - Encoders
    - Multi-Head Attention
      - Compute the attention score with multi-head attention, where both the query, the key and the value are derived from the input features
      - It looks like the input query with itself, or say, the input features are used to compute the attention score (relationships) with itself, so it's called self-attention.
    - Multi-layers
      - Multiple feed forward network with residual connection and normalization
- Output words (Expected Answers)
  - Embedding
    - Feed in the Output in parallel
    For example

    With mask, it's just like spliting a sentence into N datas where \(O_i\) contains the first \(i\) words, and is to predict the next one.

    Thus the model should be more efficient to train in parallel.
    - Mask
      - To train the model in parallel, we need to mask the future words, otherwise the model may cheat.
      - A trilled matrix is great to mask the future words.
  - Decoders
    - 2 Multi-Head Attention
      - Self.

        Compute the attention score with multi-head attention, where the query, the key and the value are all derived from the output features.
      - Combine.

        Compute the attention score with multi-head attention, where the query is derived from the output features, and the key and the value are derived from the input features.
    - Multi-layers
Prediction
- Output starts with a token.
- Use the model to pick the next most possible word, and feed it back to the model.
- Repeat until the token is picked.
Some thoughts of my opnion
- Compared to CNN, the transformer can access the global information, ganining the ability to capture the long-range dependencies, and thus the performance should be better.
- Compared to RNN, the transformer can train in parallel instead of sequentially, and thus the model should be more efficient to train.

GAN (Generative Adversarial Network)

Paper
Structure
- Generator
  - To generate the fake data.
  - Viewed as a possibility distribution, trying to fit the real data distribution.
- Discriminator
  - To distinguish the real data from the fake data through learning the real data distribution.
Main Idea
- A Min-Max Game
  - The generator tries to generate the fake data to cheat the discriminator

    The discriminator tries to distinguish the real data from the fake data.
  - \[\underset{G}{\text{minimize}}\; \underset{D}{\text{maximize}}\; \mathbb{E}_{x \sim p_\text{data}}\left[\log D(x)\right] + \mathbb{E}_{z \sim p(z)}\left[\log \left(1-D(G(z))\right)\right]\]
  - The two are just like playing aganist each other, and thus both models should be trained to be better and better to "beat" the other one.

    Finally the generator should be able to fit the real data distribution well while the discriminator should just be fooled as a random guesser (with 50% possibility).

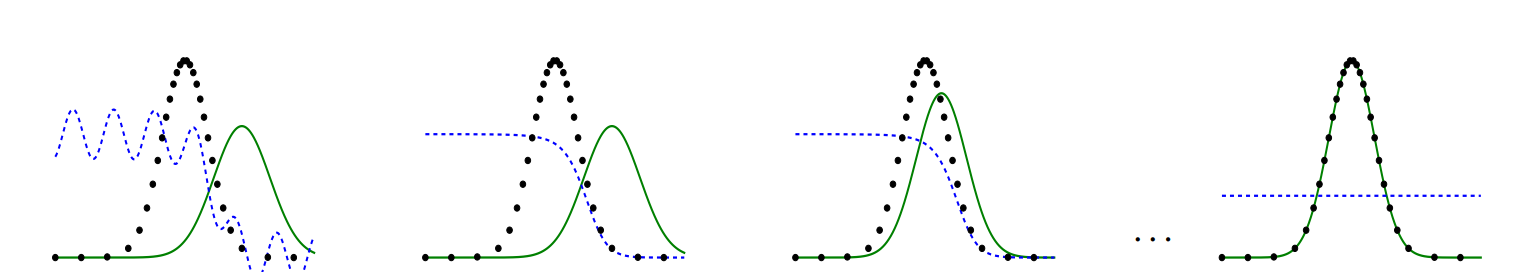

  - Black points denote real data

    Green ones denote generator distribution

    Blue ones denote output of the discriminator (possibility to be real)
Training
- Build the generator and the discriminator
- Key Steps
  - Generate the fake data using the generator
  - Use the real-fake data loss to train the discriminator for P steps
    - \[ \ell_D = -\mathbb{E}_{x \sim p_\text{data}}\left[\log D(x)\right] - \mathbb{E}_{z \sim p(z)}\left[\log \left(1-D(G(z))\right)\right]\]
  - Use the fake data loss to train the generator for Q steps
    - \[ \ell_G = -\mathbb{E}_{z \sim p(z)}\left[\log \left(D(G(z))\right)\right]\]
- Important tricks on loss functions
  - Here we actually convert the min-max game to a min-min (mind the minus) game, because a min-max game is hard to train and may fall into a cycle.
  - We use batch average to approximate the expectation, highly reducing the cost of computation.
- PS: The training optimization and tricks of normal deep learning are still useful, and many so-called improved GAN models are based on these tricks.
Some improved models
- LSGAN (Least Squares GAN)
  - Paper
  - Use the least squares loss instead of the binary cross entropy loss, thus the gradient should be more stable and sharp.
  - \[\underset{G}{\text{minimize}}\; \underset{D}{\text{maximize}}\; \mathbb{E}_{x \sim p_\text{data}}\left[(D(x)-1)^2\right] + \mathbb{E}_{z \sim p(z)}\left[D(G(z))^2\right]\]
- DC-GAN (Deep Convolutional GAN)
  - Paper
  - Use the convolutional neural network to build the generator and the discriminator, bettering the performance.
- Results on MNIST

Self-Supervised Learning

Main Idea
- Use the data without labels to self-supervise the model.
Contrastive Learning
- Main Idea
  - Doing Augumentation on the input data to get a positive pair, and combine the loss of both positive pairs and negative pairs to train the model.
  - That is, when distinguishing a totally different data, the model may easily do it by grabbing some unimportant features. So we feed them with similar data, force the model to extract the significant features.
- SimCLR (Simple Contrastive Learning)
  - Paper
  - Structure
    - Two branches to generate the positive pairs
    - \(f()\) to extract the features
    - \(g()\) to project the features, or say, a typical classifier
  - Training
    - Generate positive pairs (seemed quite important in training)
    - Feed in the batched 2*N datas, where larger N preferred
    - Minimize the loss (Maximize the agreement)
      - \[\ell = -\frac{1}{2N}\sum_{i=1}^{N}\left[\log\frac{\exp(sim(f(x_i),f(x_{i^+}))/ \tau)}{\sum_{j=1}^{2N} (j!=i) \exp(sim(f(x_i),f(x_j))/ \tau)}\right]\]
  - Results
    - Improved the performance of a pre-trained model a lot.
